EMMC153 BGA169 alloy SD interface smart digital device GPS device flash memory data recovery burn-in test programming code

(Long probe life!!!)

Product introduction

Product use:EMMC169/153, test block, the IC chip test, read and write

Test method

1. Select and IC match the limit frame, the IC according to the direction of the flat into the SOCKET

2.According to the direction of inserted into the free SD interface, connect the computer programmer or the corresponding test, burning

Test stand:EMMC169/153-0.5

Characteristics:

1, using the standard SD interface mode, by reading card device and a computer connection or through a programmer SD interface connected to the test or burn, etc. the corresponding operation

2, compatible with the ball without the ball test, IC limit frame using a mold, can be selected according to IC different size limit frame for replacement, to achieve different sizes IC can pass

3, support hot plug, supported by the SD interface or through the pin connection and PIN connection board corresponding test

4, the structure of the injection molding, positioning precision, take and put IC convenient, higher efficiency

Specification size

Model: EMMC169/153-0.5

Pin spacing (mm):0.5

Pin PIN number: 30

Chip size: 12*16mm 12*18mm 14*18mm 11.5*13mm

(default with a size of the limit box, trouble before placing a single contact or message specified, plus purchase limit box price of USD8)

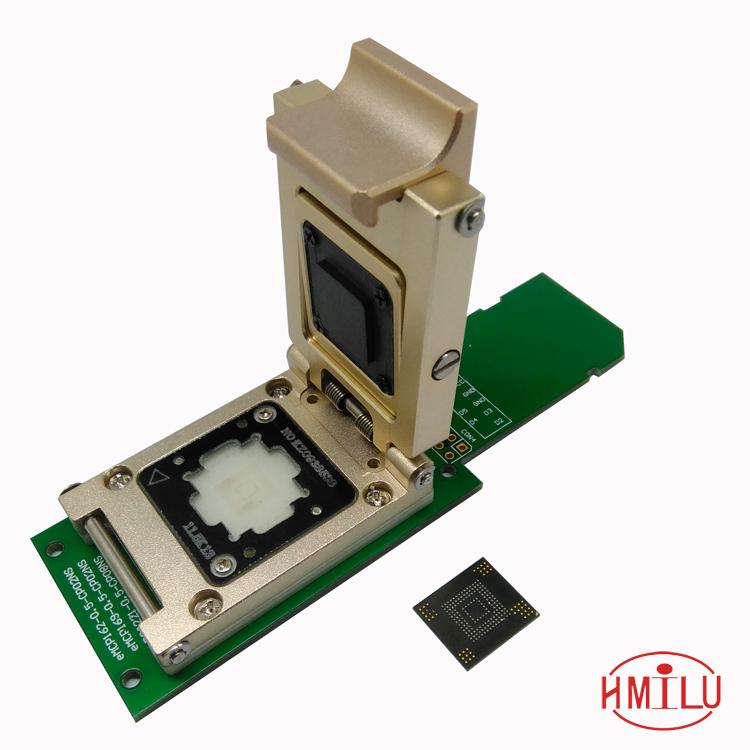

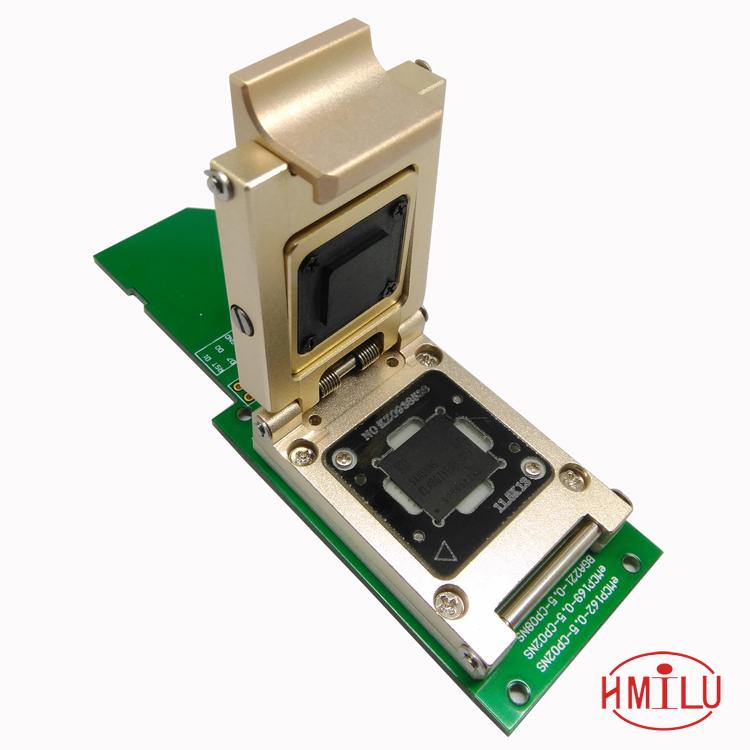

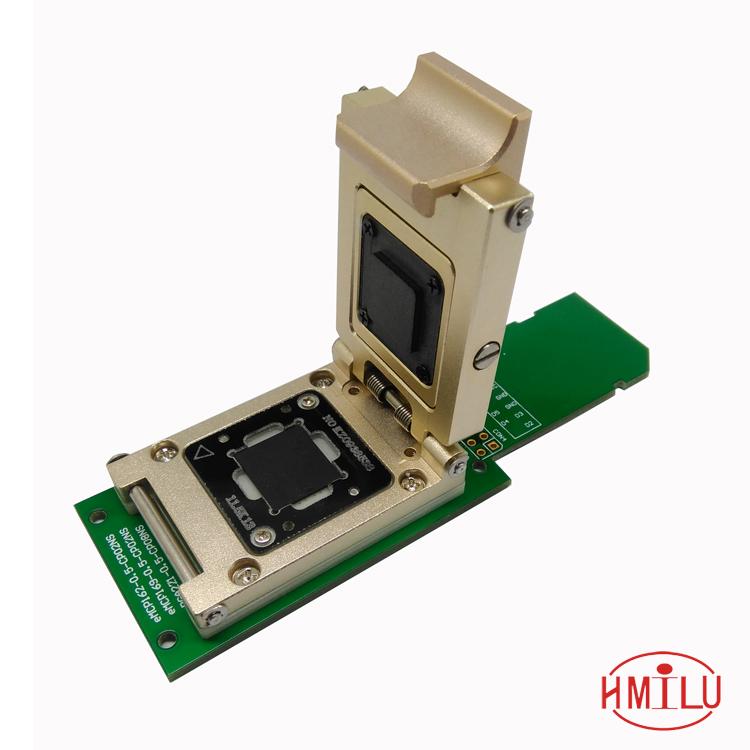

Physical map
