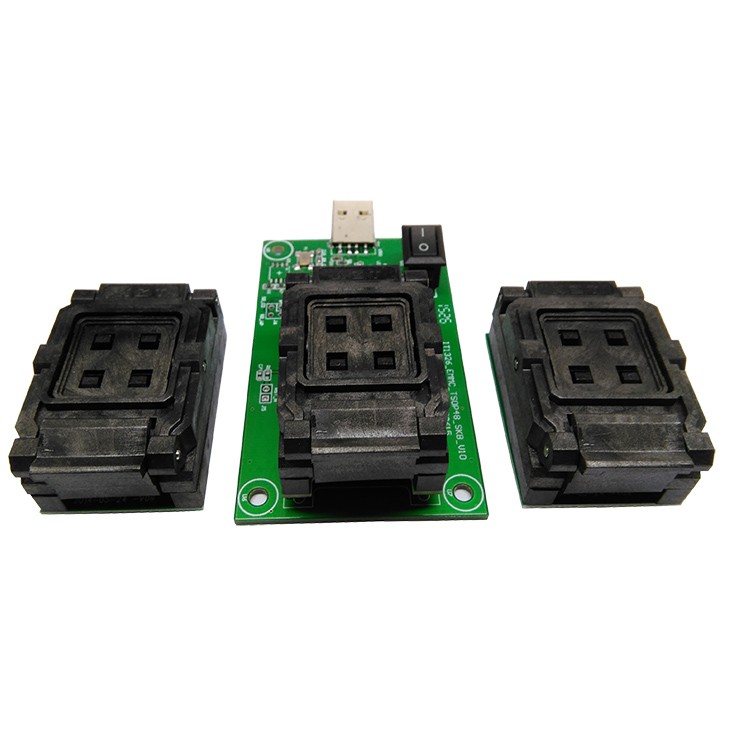

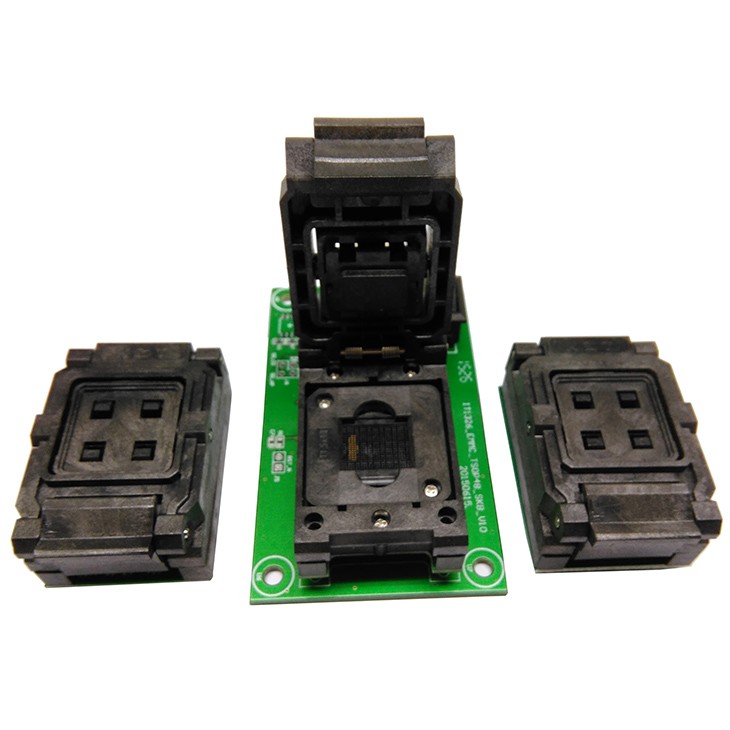

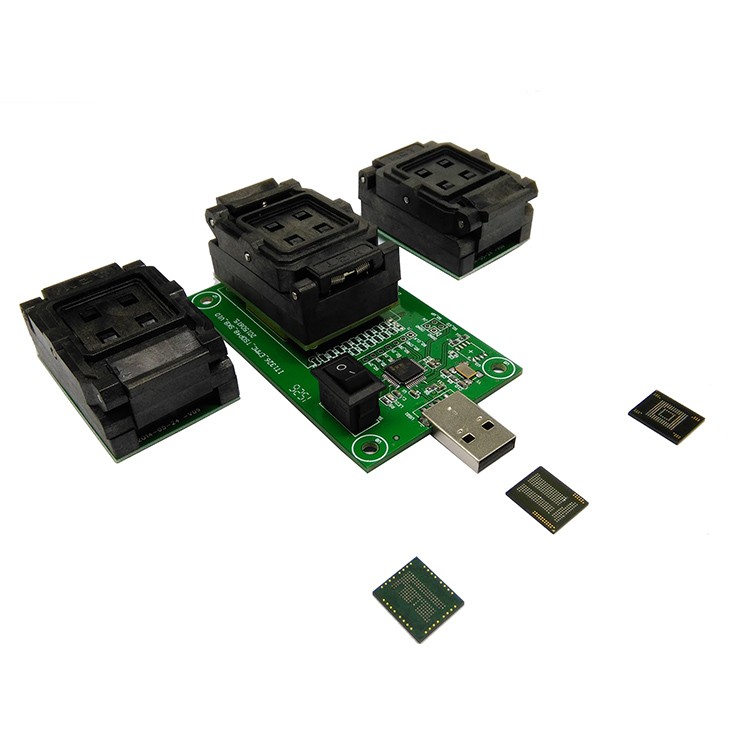

3 IN 1 eMMC eMCP Test Socket BGA153/169 BGA162/186 BGA221 Reader 11x10mm 11.5x13mm 12x16mm 12x18mm 14x18mm Flash Data Recovery

Feature :

* Apply to eMCP and eMMC of Sumsung, Sandis k, Toshiba, Hynix, Micron, MTK and Intel.

* Apply to BGA153 BGA169 BGA162 BGA186 BGA221.(just need to change the corresponding socket)

* Easy operation by just inserting the USB into PC.

* It provides a compact test solution for eMMC eMCP used in applications such as mobile, data recorder, the Internet of things, etc.

1) Test, debug, validation, and programming of eMMC eMCP device

2) Failure analysis / System and wafer test.

3) Package and Chip qualification.

4) Production prototype / Data recovery.

We provide a simple software which can chekc the capacity , read , write and verify , please send us an email if you need it .

Specification :

* Type : BGA153/169 BGA162/186 BGA221 test socket ( USB interface )

* Pin Count :

BGA153/169 test socket:30 pins

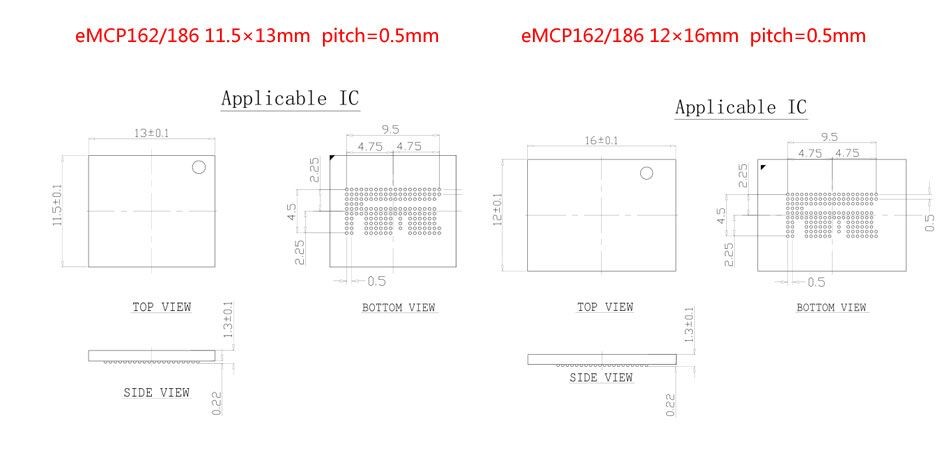

BGA162/186 test socket : 17 pins

BGA221 test socket : 36 pins

* Pin Pitch : 0.5mm

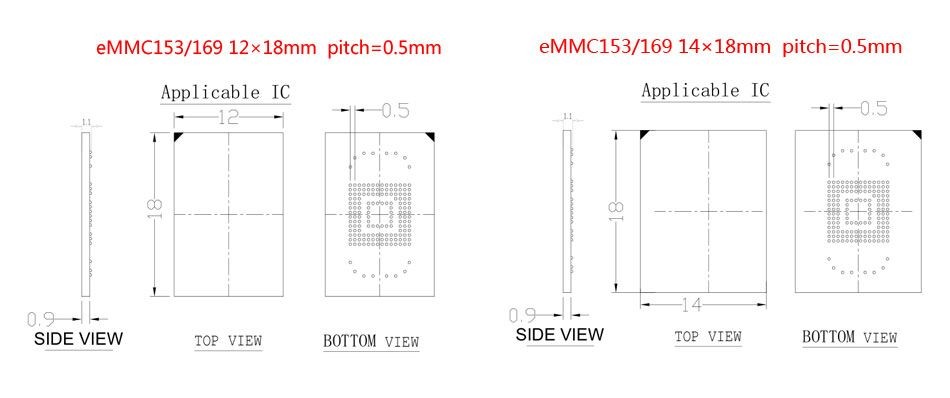

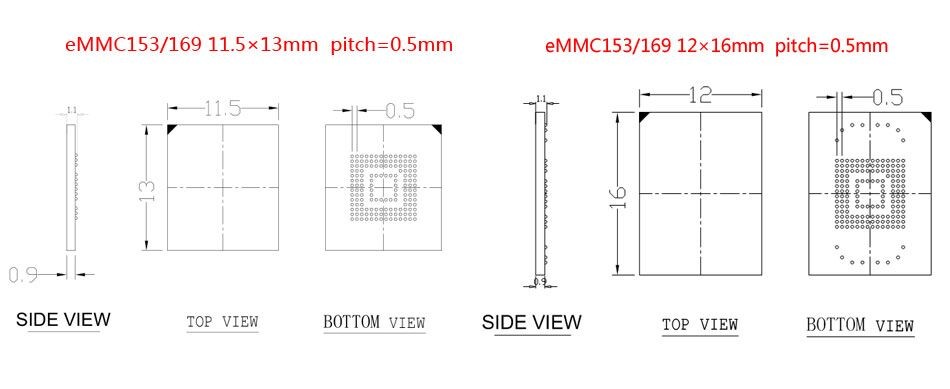

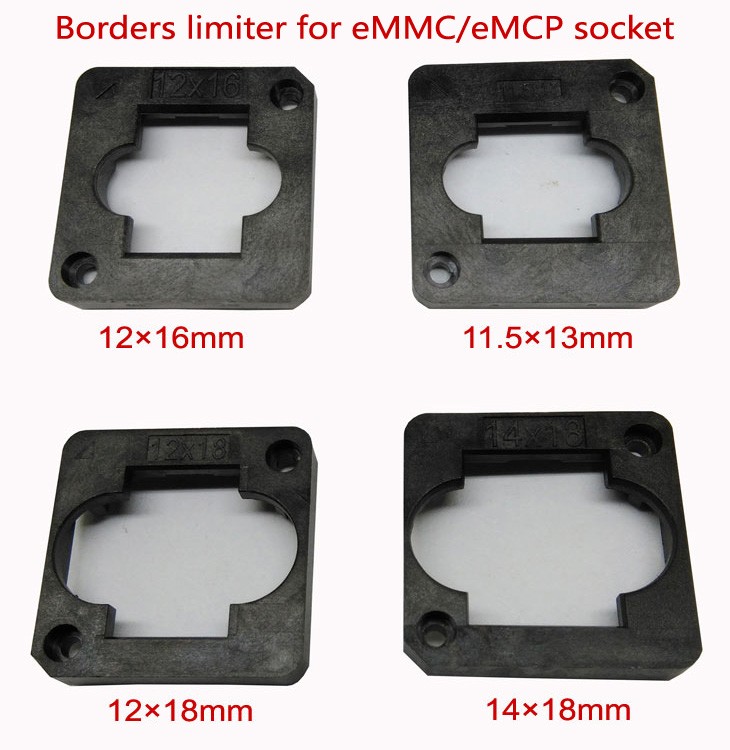

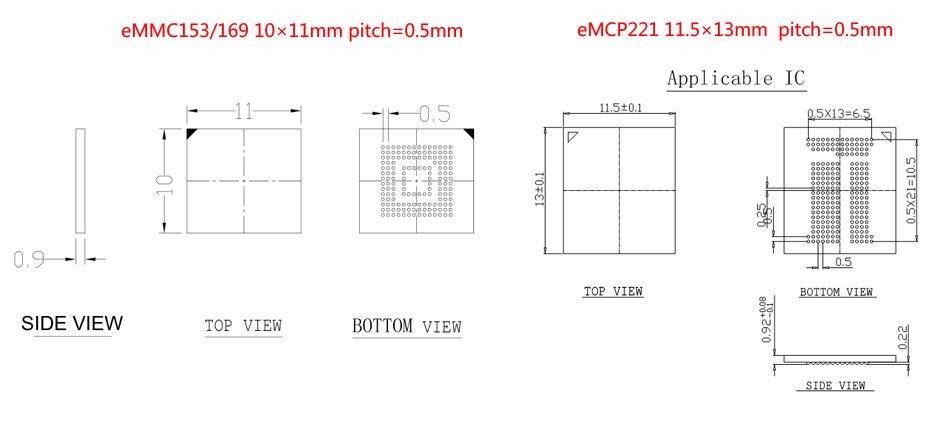

* Applicable IC Size : 11.5x13mm , 12x16mm , 12x18mm , 14x18mm

* Life Span : 25,000 times

More types sockets and adapters for eMMC , eMCP , SOP, SSOP, TSSOP, QFP, QFN, BGA, SOT, MSOP, DFN and customize design , for customized socket and more product detail , please feel free to contact us .
