BGA24-1.0 Clamshell Burn in socket pin pitch 1.0mm IC size 6*8mm Pin Grid 5*5 4*6 BGA24(6*8)-1.0 BGA24 VFBGA24 burn in socket

Specifications:

Material & Performance:

A:Tips:

Welcome to visit us,If you have any questions,please leave message to us.

If you want to buy more quantites about this one.please connect with me and ask me to get the better price.

Thanks.

B.BGA socket New creation

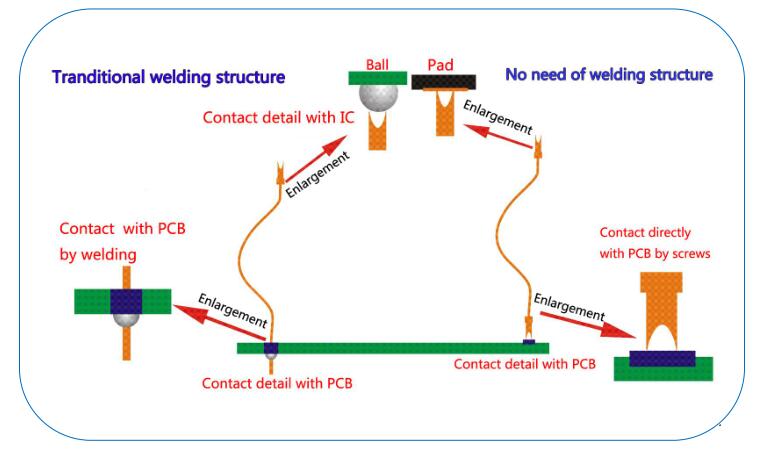

a.connect with PCB ways Innovation

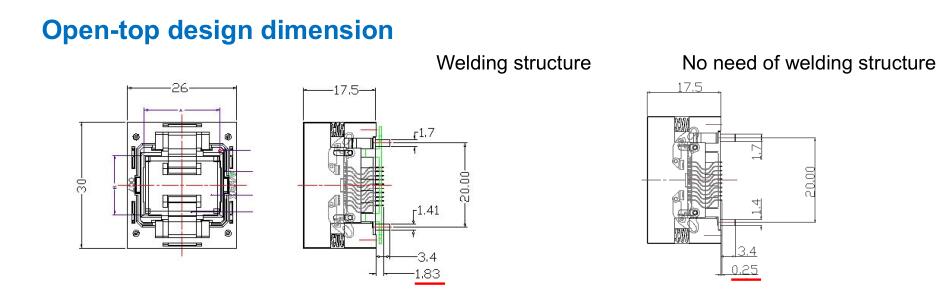

             1.Welding structure :

                Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and

                effort , and once the socket is welded , it can’t be recycle ;

                2.No need of welding structure :

                Adopt innovative screws locking type to fix the sockets and PCBA board , ensure contact is

                stable , meantime shorten the assembly time , time-saving and reduce effort , and socket

                can be removed from the PCBA board , recycle and reduce test cost ;

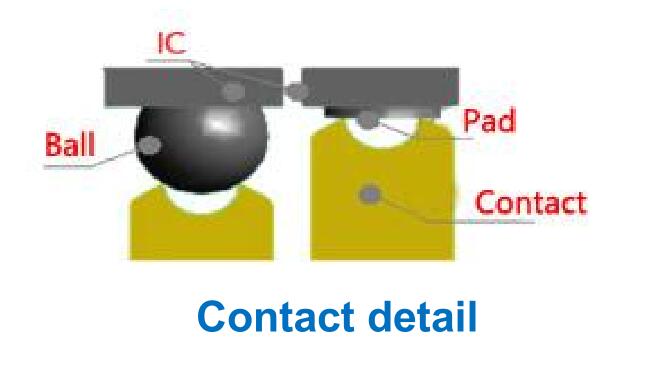

b.Connect with IC ways Innovation

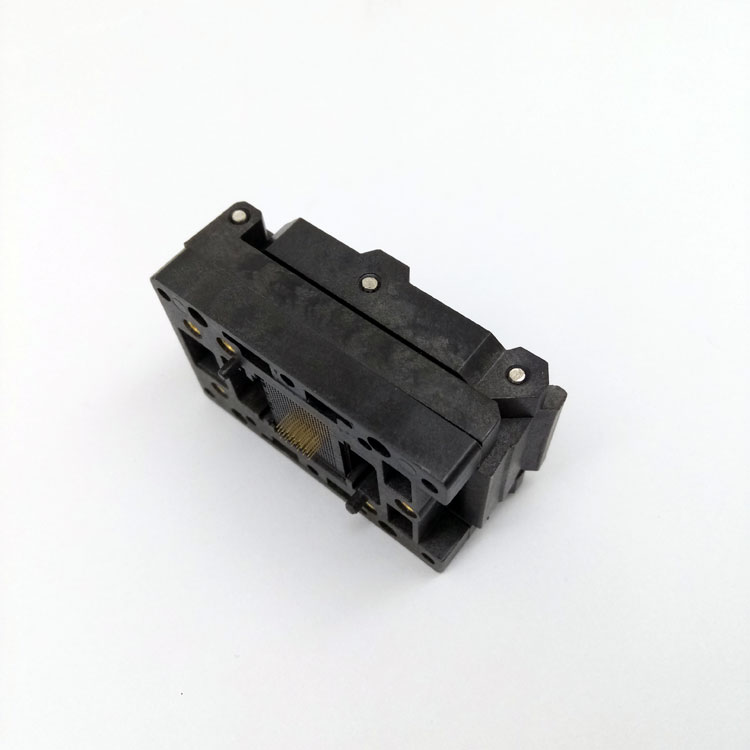

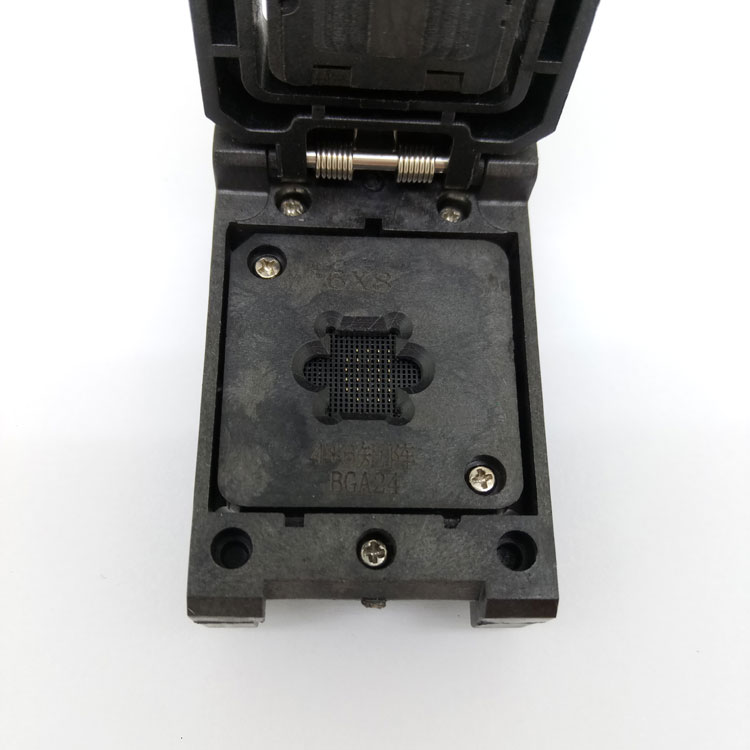

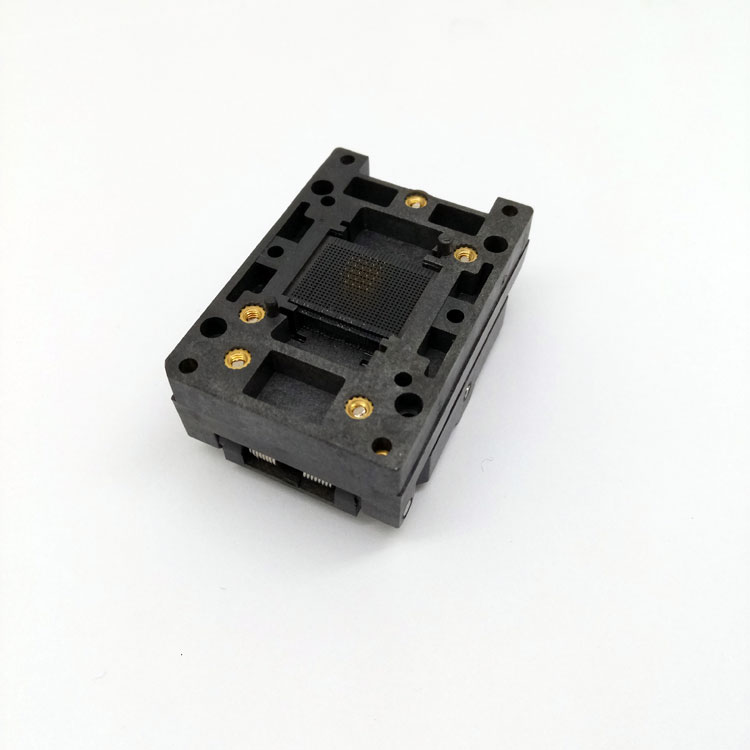

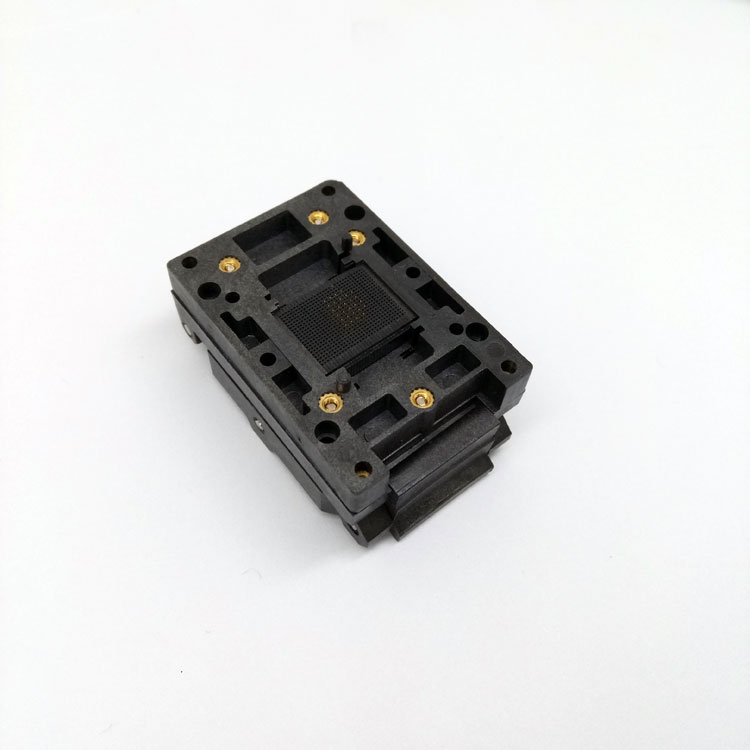

C.HD picture to show the detailed product
