BGA48 OPEN TOP burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket - BGA socket

products

BGA48 Clamshell burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket

Home Products BGA socket
BGA48 OPEN TOP burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket
  • BGA48 OPEN TOP burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket
向上
向下

BGA48 OPEN TOP burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket

BGA48 Clamshell burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket

  • Package:

    BGA48, VFBGA48

  • Pin Pitch:

    0.8mm

  • Pin Count:

    48 pins

  • Applicable IC body size:

    8*10mm

  • Product description:

    Specifications: Part number:BGA48-0.8-CP08/50N IC Package:BGA48, VFBGA48 Pin Pitch:0.8m...
sales@andksocket.com
Asking price

Similar items

read more

  • Features
  • Schematics
  • Video
  • Accessories
  • FAQ
  • Message

BGA48 OPEN TOP burn-in socket pin pitch 0.8mm IC size 8*10mm BGA48(8*10)-0.8-CP08/50N BGA48 VFBGA48 Burn in/programmer socket

Specifications:

Part number:BGA48-0.8-CP08/50N
IC Package:BGA48, VFBGA48
Pin Pitch:0.8mm
Pin Count:48 pins
IC Size:8*10mm
Structure:Clamshell

Material & Performance:

socket Body: PEI
Contacts:Beryllium Copper Alloy
Contact Plating:Gold over Nickel
Operation Force:2.0KG min, the more PINs the greater force.
Contact Resistance:50mΩ max
Dielectric:700V AC for 1 minute
Insulation Resistance:1,000MΩ 700V DC
Max Current Capacity : 1A
Temperature Rating:-55℃~+175 ℃
Life Span 25,000 Times (Mechanical)


A:Tips:

Welcome to visit our KZT-Store,If you have any questions,please leave message to us.

If you want to buy more quantites about this one.please connect with me and ask me to get the better price.

Thanks.


BGA48-2

1

B.BGA socket New creation

a.connect with PCB ways Innovation

Socket New creation

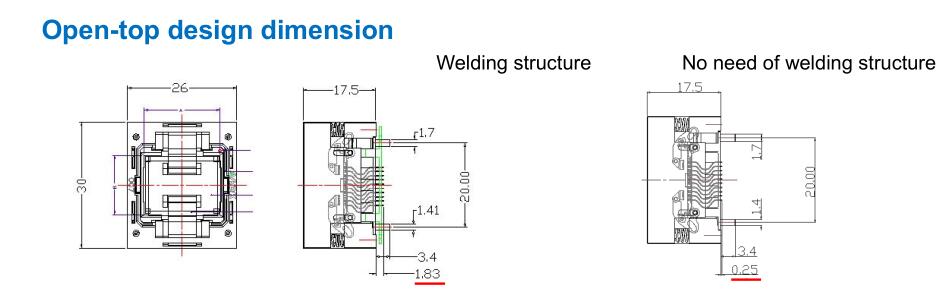

                          Welding structure :                                                                                                         No need of welding structure:
                          Way:Fix by welding                                                                                                         Way:Fix by 4 screws
                          Pin length：1.83mm                                                                                                      Pin length：0.25mm

      Two structure features:
             1.Welding structure :
                Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and
                effort , and once the socket is welded , it can’t be recycle ;
                2.No need of welding structure :
                Adopt innovative screws locking type to fix the sockets and PCBA board , ensure contact is
                stable , meantime shorten the assembly time , time-saving and reduce effort , and socket
                can be removed from the PCBA board , recycle and reduce test cost ;
all ways

b.Connect with IC ways Innovation

1.Open-top/Clamshell structure
2.Accommodates pitch :4/0.5/0.65/0.8/1.0mm
3.Compact size and low Actuation Force
4.Field exchangeable package location plate
5.“U”contact support any type of solder ball shape
（Ballno balldamaged ball,the drop of contact
surface is more than 0.2mm）
IC connect ways

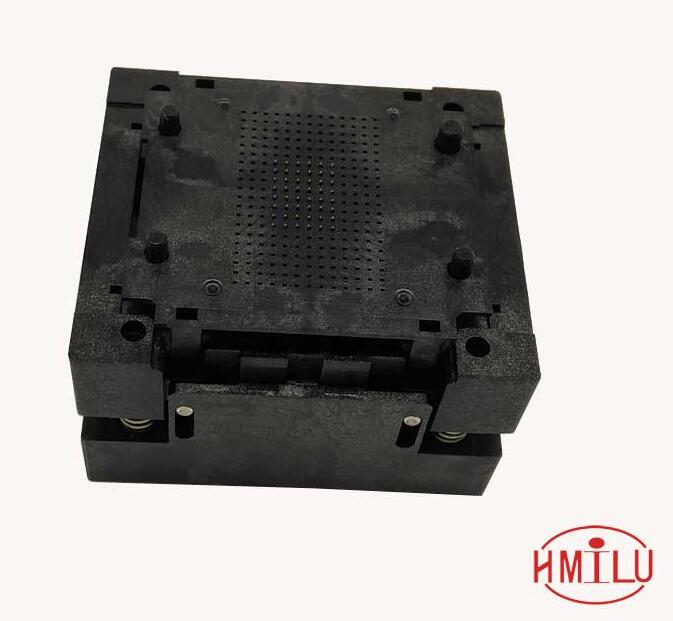

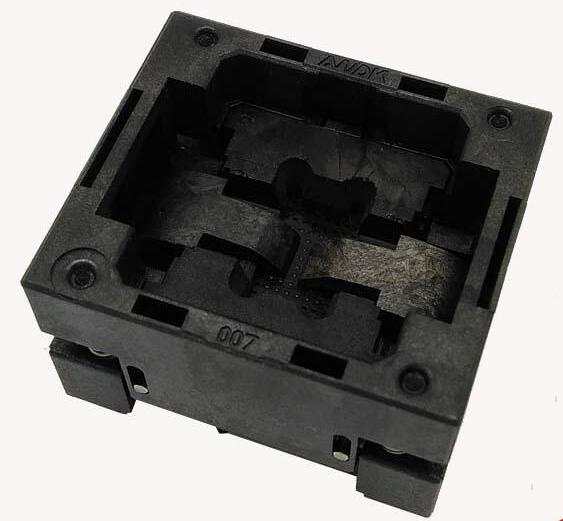

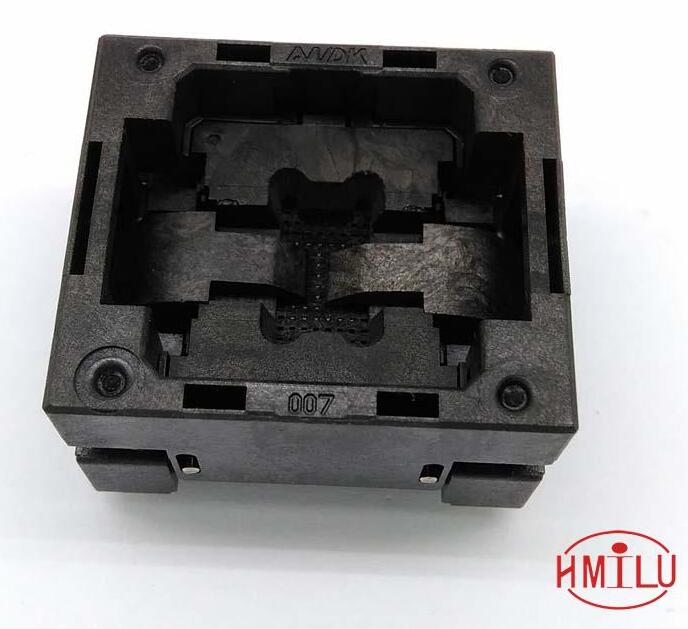

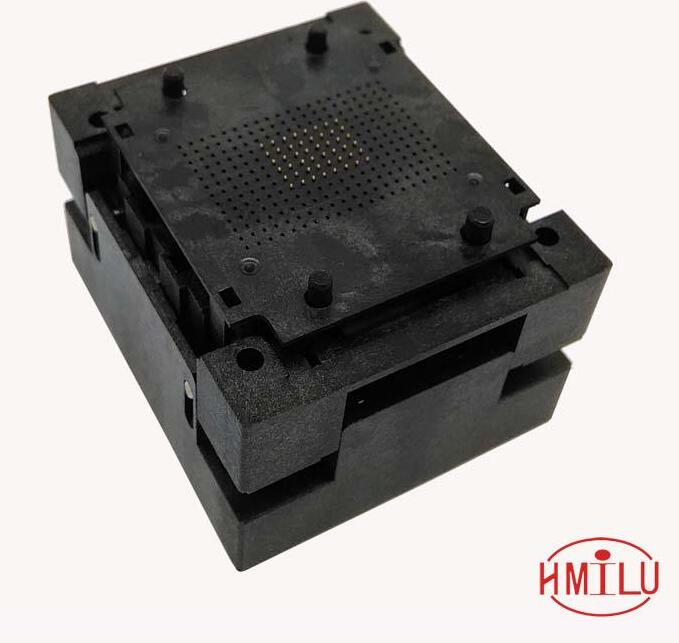

C.HD picture to show the detailed product


   12345
