Product Feature :

1. Use double contact technology , contact more stable ,

2. The socket shell use special engineering plastic , high strength , long mechanical life ,

3. The shapnel use import beryllium copper , small impedance , good flexibility ,

4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance :

1. Material :

a) Insulator , PEI , PPS

b) Shrapnel , beryllium copper Be Cu Gold plating(30μ) Over Nickel plating(50μ)

2. Electrical Specification :

a) Insulation resistance : 1000mΩ Min,At DC 500V

b) Voltage resistance : voltage resistance

c) Contact resistance : exceed 25mΩ

d) PIN feet stretch : 55g/PIN(Normal)

e) Mechanical life : 100000Times

f) Operating temperature : Minus 65 degree to 55 degress

g) Operating force : exceed 0.9kg Max

3. Specification :

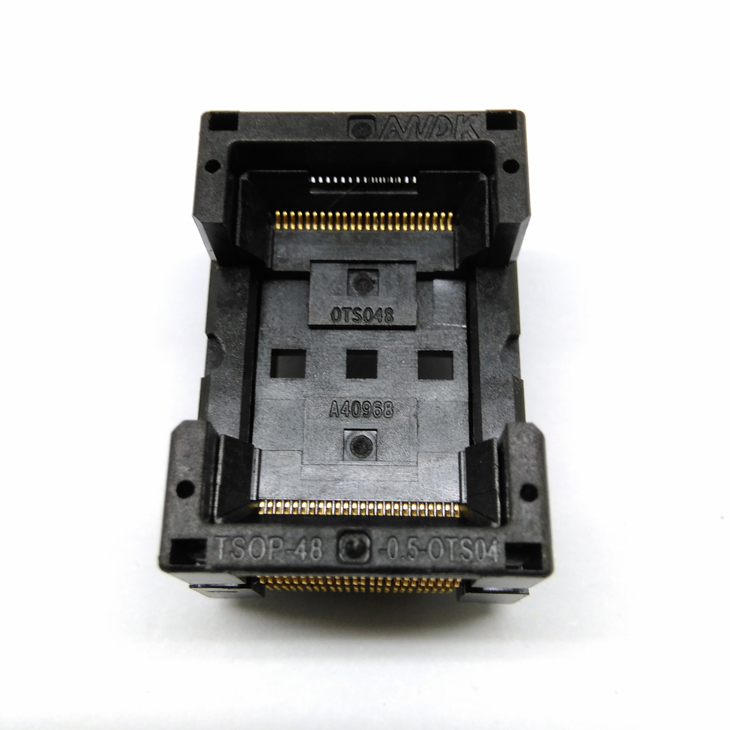

a) Type : TSOP 48-0.5

b) Pin pitch : 0.5 mm

c) Pin Count : 48

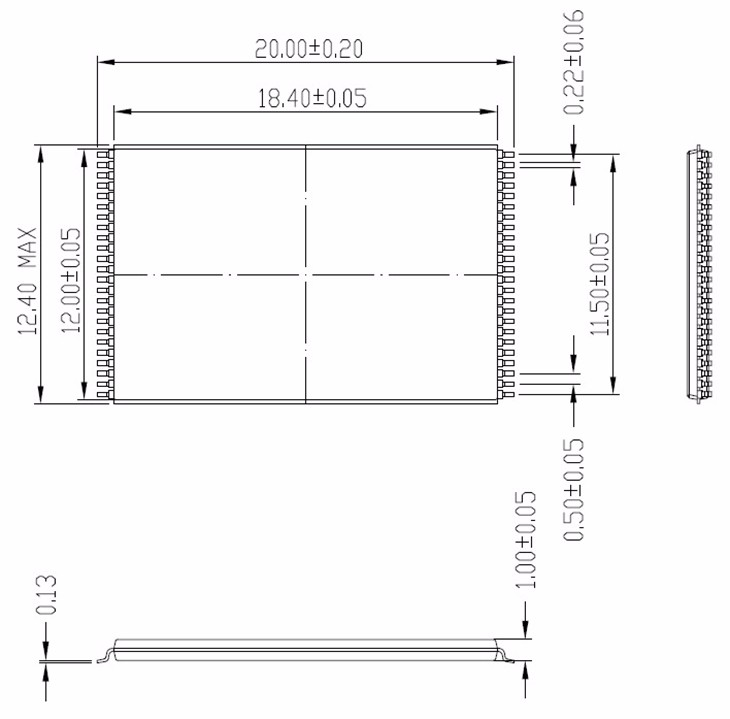

d) Dimension : 12*18.4 mm
