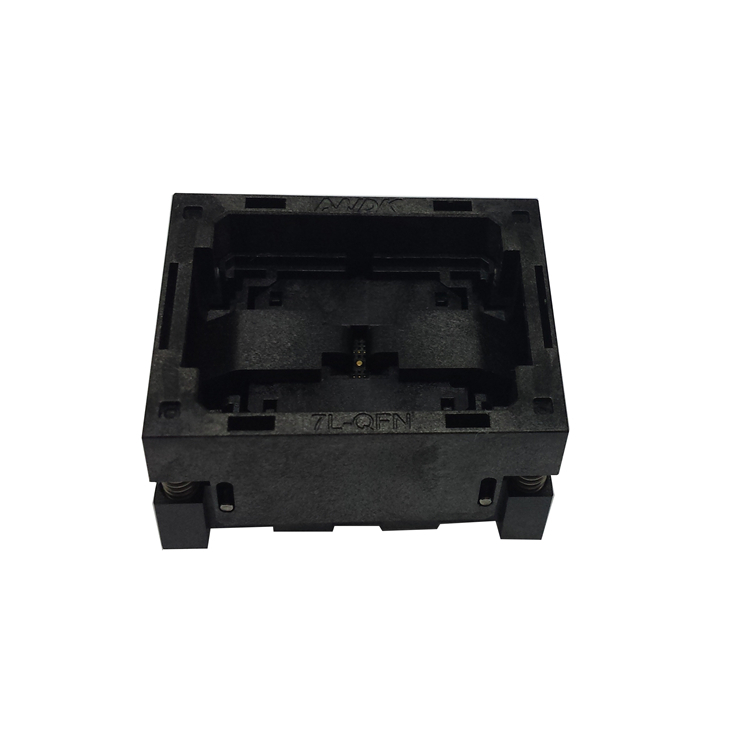

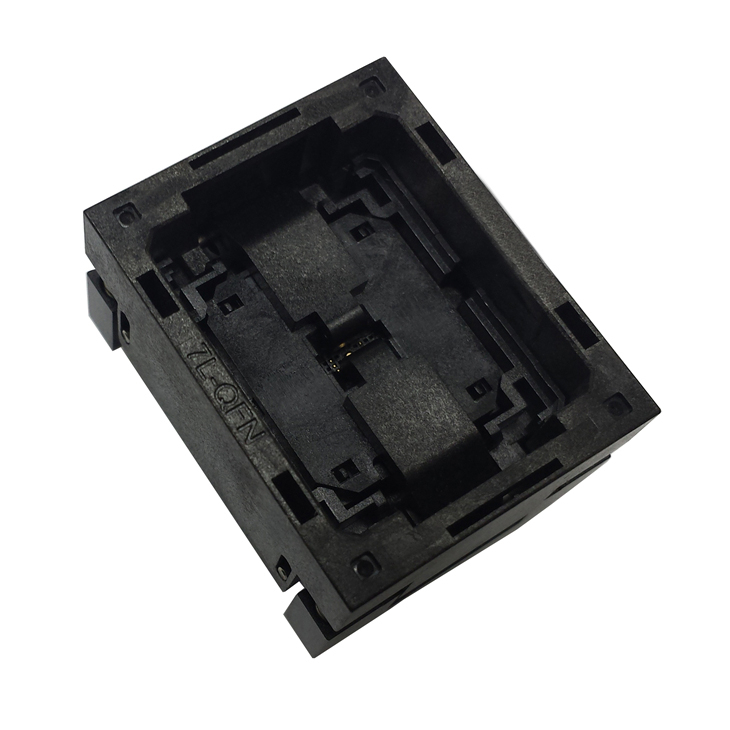

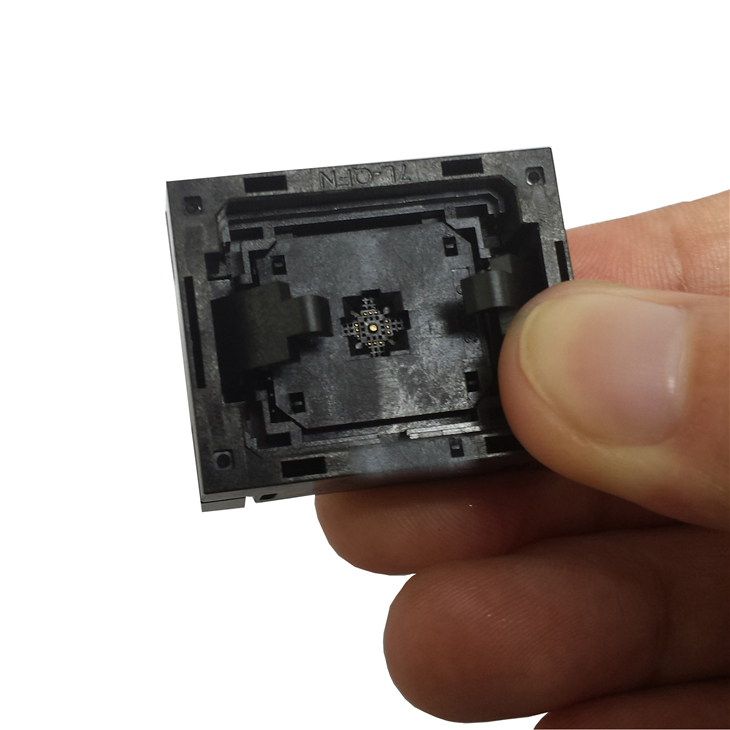

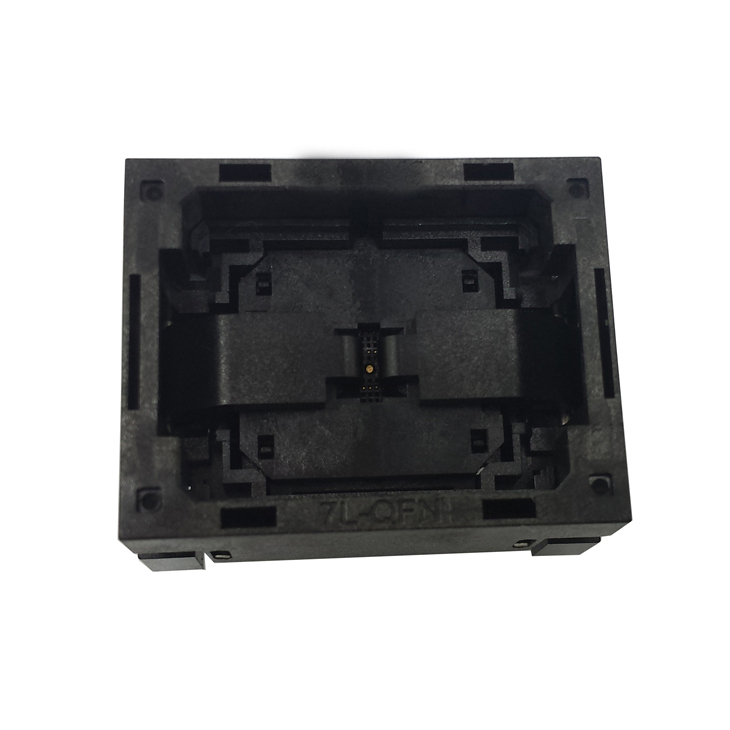

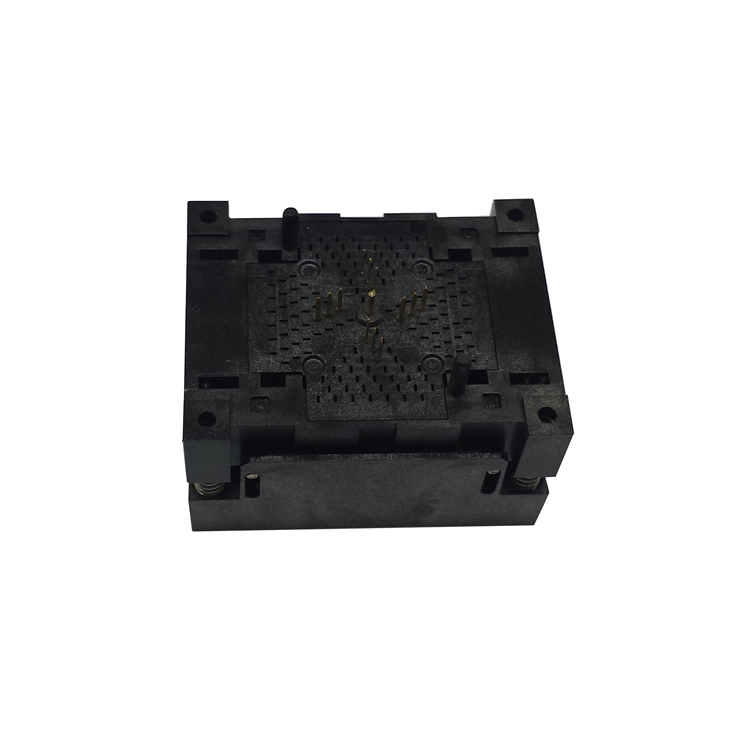

QFN12 MLF12 Open Frame Burn in Socket Chip Size 3*3 Pitch 0.5mm Programming Socket Flash Adapter QFN12 Burn in Socket

Introduction :

1. Product Usage : programmer socket , test socket , burn in and test for chip QFN12

2. Applicable Package : QFN12 , pin pitch 0.5mm

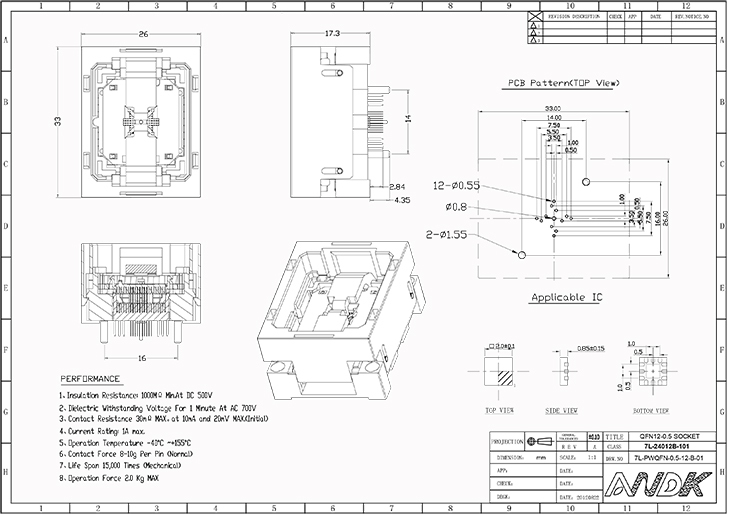

2. Specification and Dimension :

a) Type : QFN12-0.5

b) Pin pitch : 0.5 mm

c) Pin Count : 12

d) Applicable IC Body Dimension : 3*3 mm

we're the original manufacturer , we have the lowest competitive prices , the shortest processing time guaranteed . If you have any inquiry , please contact us freely .
