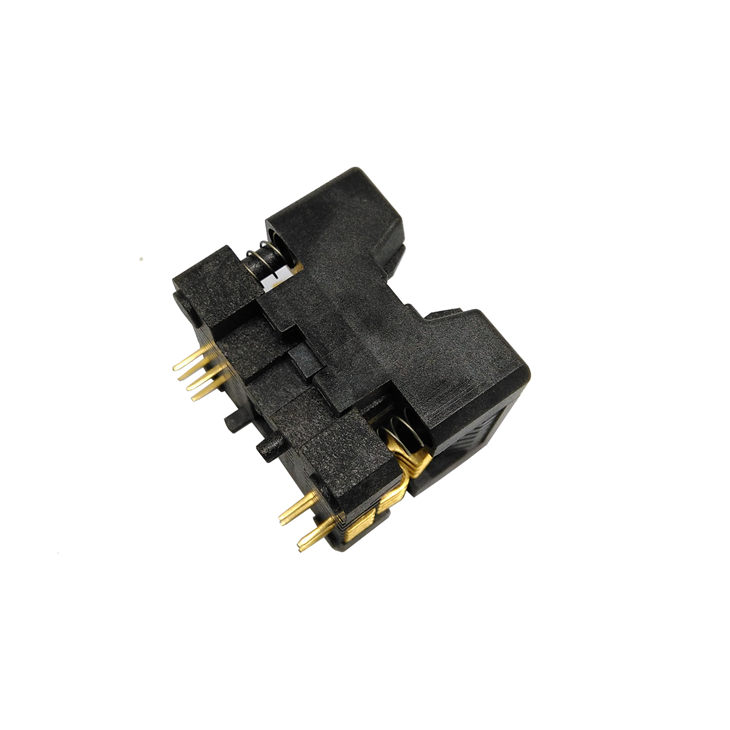

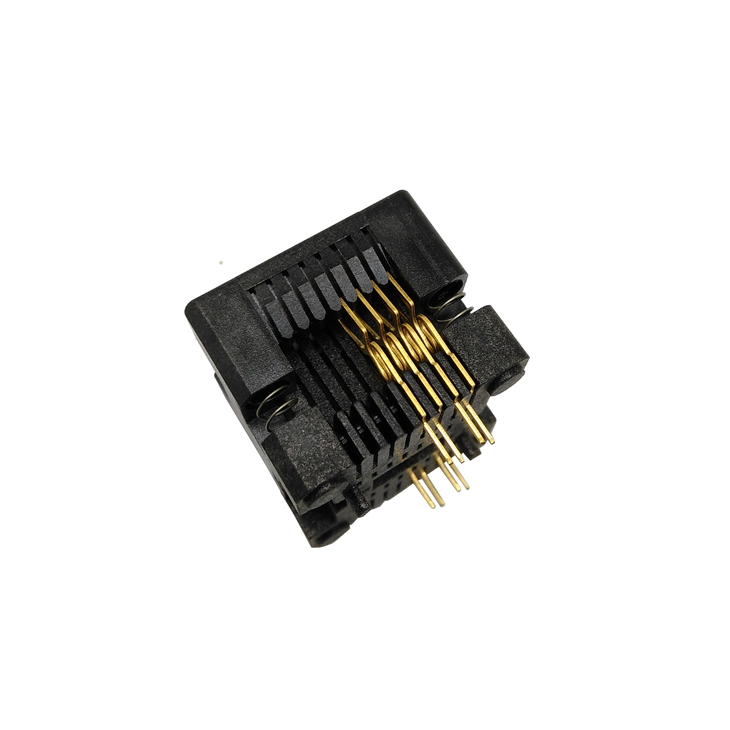

SOP8 150mil 3.9mm Burn in Socket SOP8 ICTest Socket OTS-16-1.27-03

Product Feature :

1. Use double contact technology , contact more stable ,

2. The socket shell use special engineering plastic , high strength , long mechanical life ,

3. The shapnel use import beryllium copper , small impedance , good flexibility ,

4. Coating with ticken gold plating layer , contact ticken electroplate , lowest contact resistance , high reliability .

Product performance :

1. Material :

a) Insulator , PEI , PPS

b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

2. Electrical Specification :

a) Insulation resistance : 1000m Min,At DC 500V

b) Voltage resistance : voltage resistance

c) Contact resistance : exceed 25m

d) PIN feet stretch : 55g/PIN(Normal)

e) Mechanical life : 50000Times

f) Operating temperature : Minus 65 degree to 55 degress

g) Operating force : exceed 0.9kg Max

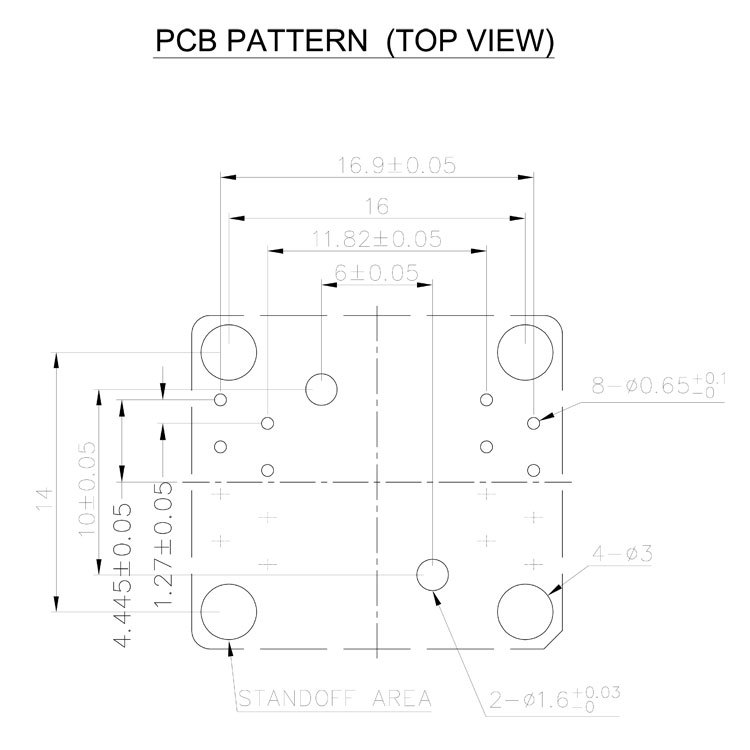

3. Specification and Dimension

a) Type : SOP 8 (16)-1.27

b) Pin pitch : 1.27mm

c) Pin Count : 8

d) Applicable IC body width : 3.9mm

ANDK Thoery life 20,000 times(Mechanical)

We're the original manufaturer , we can provide the lowest and competitive price , the shortest processing time is guaranteed ! ! !

ANDK Thoery life: 20,000 times(Mechanical)

HMILU Thoery life: 5,000 times(Mechanical)
